Характеристики
| Параметр |
Значение |
| Производитель: |
Inogeni |
| MPN: |
INOGENI-SDI2USB3 |
| Модель: |

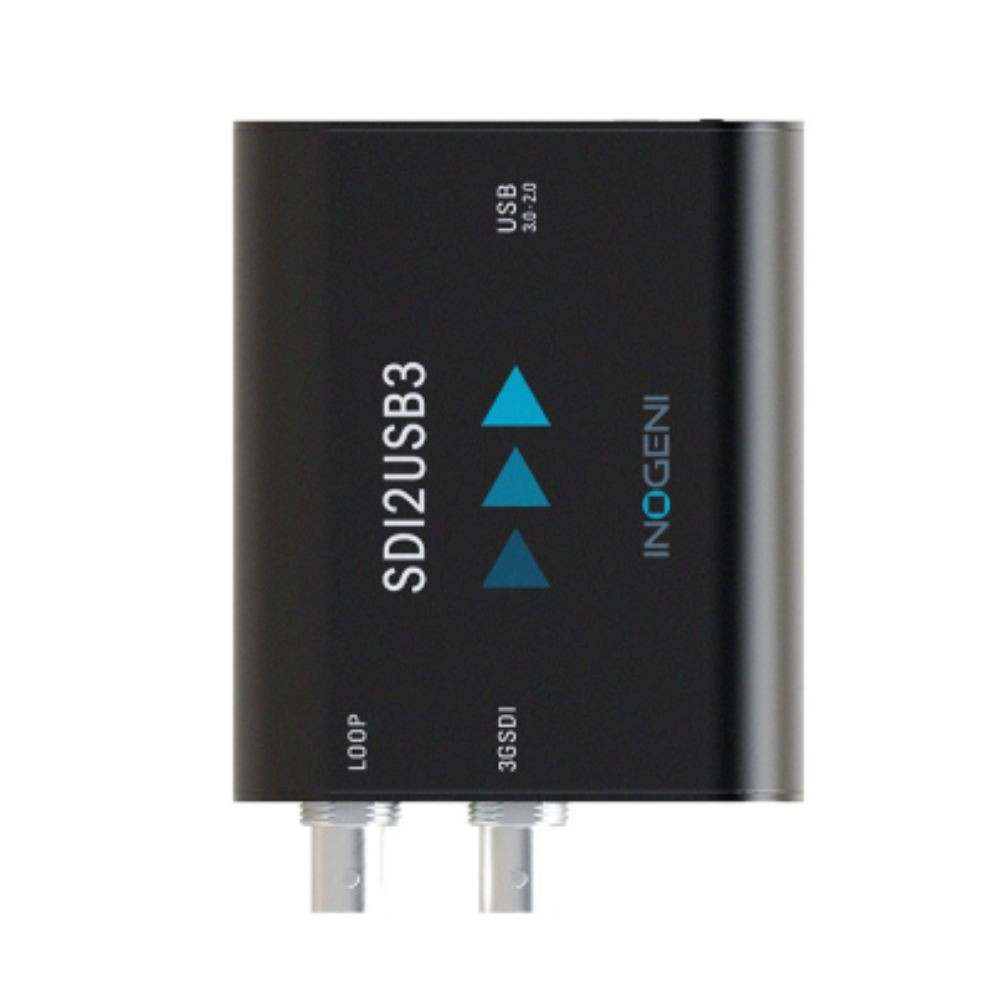

INOGENI INOGENI-SDI2USB3 |
| Тип: |
Converter |
| Jitter (alignment):: |
HD/SD: <0.2 UI 3Gb/s: <0.4 UI |
| Cable Length:: |
150m (492 ft) at 1.485 Gb/s 120m (393 ft) at 2.970 Gb/s |
| Frame Rates:: |
60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz |
| Colour Space:: |
YCbCr, 4:2:2 |
| Sampling Rate:: |
148.5/148.35 MHz |
| Embedded Audio:: |
Ch 1&2 48kHz LPCM |
| Connector & Video Resolutions:: |
1 x BNC (3GSDI active loop out) |
| USB - Connector & Video Resolutions:: |
1 x USB 3.0 Type-B |
| USB - CODECs:: |
YUY2 4:2:2 8-bit for USB 3.0 MJPEG for USB 2.0* |
| Notes for MJPEG for USB 2.0:: |
*Devices having serial numbers >=SD2036xxx will support MJPEG ove, it will be un |
| USB - Video Scaler:: |
Automatic hardware based |
| USB - Colour Space Conversion:: |
Automatic hardware based |
| USB - Sampling Conversion:: |
Automatic hardware based |
| USB - Frame Rate Conversion:: |
Automatic hardware based |
| Analog Audio I/O:: |
2-channel LPCM audio from SDI |
| Audio Input Connector:: |
Ch 1&2 48kHz LPCM from SDI |
| Operating System:: |
No driver installation necessary. Windows 7 and above (32/64-bi |
| Minimum Host Requirements:: |
USB 2.0 port - We recommend USB 3.0 for uncompressed video 4GB RA |
| Motherboard:: |
Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic. |
| Supported Cameras:: |
Cameras and camcorders with a SDI output |
| Software Compatibility:: |
UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible |
| Operating Temperature:: |
0° to 45°C 32° to 113°F |
| Storage Temperature:: |
-40° to 105°C -40° to 221°F |
| Relative Humidity:: |
0% to 90% non-condensing |
| Certifications: |
FCC, CE, RoHS, SoV, RCM, BSMI RoHS, BSMI, CB |
| TAA-Compliant:: |
Yes |
| Универсальный товарный код: |
040232250538 |
